Roval-Solin®
Aluminium compression profile with or without EPDM sealing tape is thanks to its special profiling suitable for finishing roof coverings against an upright wall. You can choose from various models and dimensions. Suitable for synthetic and bituminous roof coverings. For quick installation these profiles are provided with slotted/screw holes by default. All profiles are available in brute, anodized or enamelled versions. Lengths from 3000 mm.
Available in various models.
Item overview
Click on one of the types below for technical drawings and specifications
| CAD | Specification | Height | Cover height | Overhang below | ||
|---|---|---|---|---|---|---|
| 151613 | - | 63 mm | mm | 15 mm | ||
| 151607 | - | 68 mm | mm | 15 mm | ||
| 151606 | - | 70 mm | mm | 40 mm | ||
| 151682 | - | 128 mm | mm | 15 mm | ||
| 151681 | - | 138 mm | mm | 10 mm | ||
View our product warranty terms here
ROVAL-SOLIN TYPE RF
Aluminium compression profile without sealing tape. Available in various dimensions.

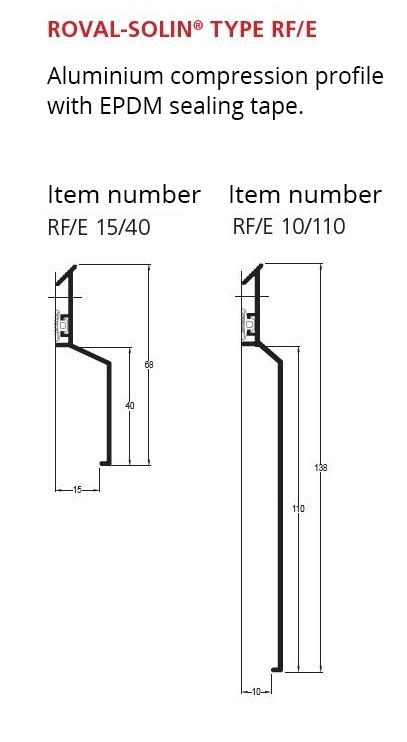

ROVAL-SOLIN TYPE RF/E
Aluminium compression profile with EPDM sealing tape. Available in various dimensions and models.
